HPL India Limited

Switchgear

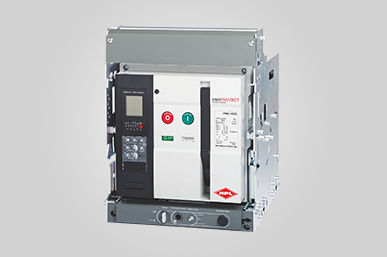

Air Circuit Breaker
(ACB)

Range : 630A – 6300A.
Operational voltage up to 690V & even above - on request.
Icu 50kA to 120kA at 500Vac Ics & Icu at higher voltages - also available.
Icw : 50kA to 100kA (for 1 sec).
Icw ratings for 2 sec & 3 sec – also available.
Customer oriented Trip Relay - with advanced measurement functions & communication functions. Suitable for Aluminum & Copper termination, Conversion of Terminal orientation at site.

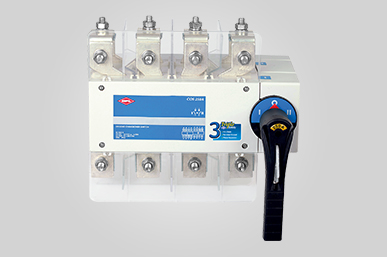

Onload Changeover Switch

Range 63- 3150A in 6 frame sizes.
Conforming to IS 13947 part 3/93.
Available in 3P & 4P versions.
4P with 100% Neutral.
Arc Chute plates to quench arc within the switch and also enhance contact life. Increased thermal withstand capacity of switch body. Enhanced Insulation voltage

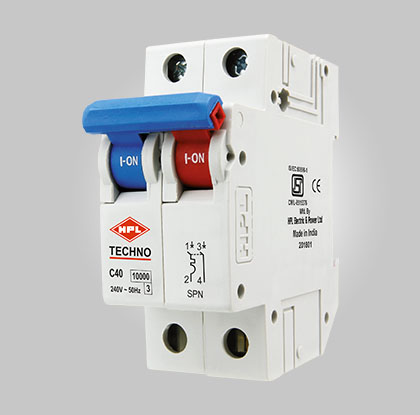

Techno MCB

Range : 0.5 to 63 Amps 240/415V.
AC Available in SP, SPN, DP, TP, TPN & FP.
Breaking capacity 10kA.
Available in B, C & D Curve Insulation voltage : 660V, frequency : 50/60Hz.
Mid Trip Technology Protection against Short Circuit & Over Load Low let through energy & low watt loss.

Meters

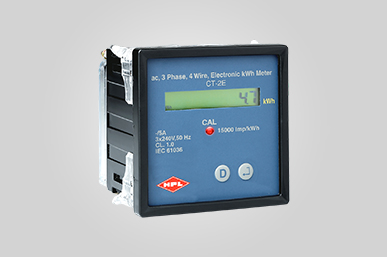

Digital Energy Meter
CT-2E

CT Operated, -/5A in class 1.0 accuracy. CT Primary programmable up to 6000A (For Direct reading). No separate Auxiliary supply required. Low Power Consumption less than 1 watt per phase. Pulse Output. Anti tamper features.

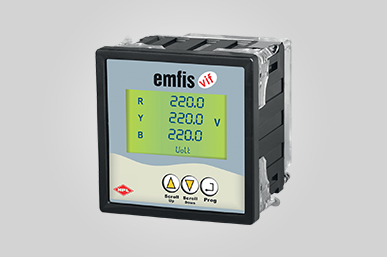

Multifunction Meter
Emfis Vif

-/5A in class accuracy.
1.0 Suitable for 3 Phase 4 Wire LT Network.
CT Primary Programmable upto 6000A.
Backlit LCD Display 17 parameters including: Phase to Phase voltage, Phase to Neutral Voltage, Instantaneous Current,Average Current, Maximum Current, Total Current, Frequency.

LED Lights

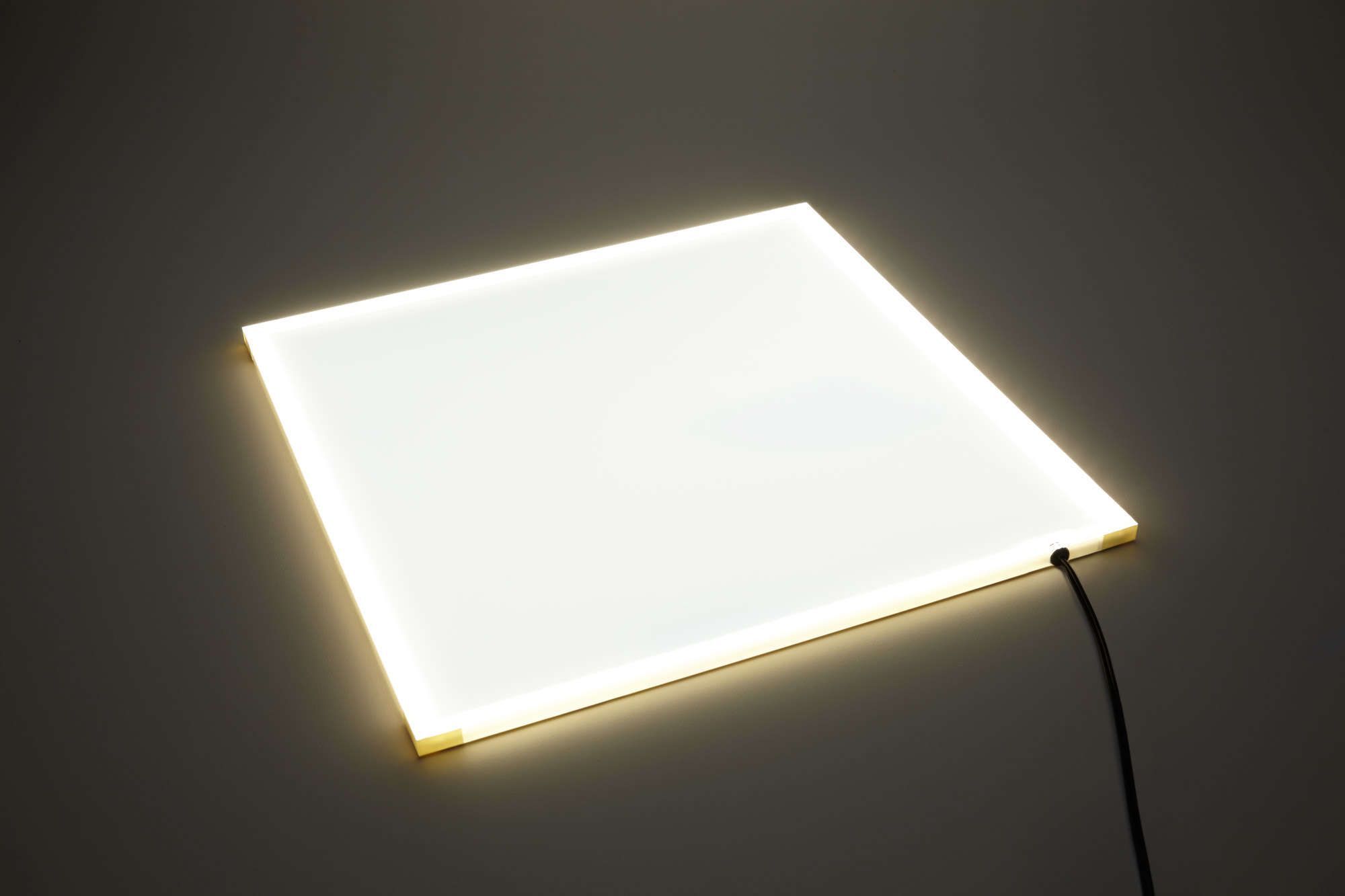

LED Panels

Solid sate high brightness SMD LED's for good quality illumination and longer life . Back lit Illumination technology Excellent heat dissipation through high purity , high thermal conductivity heat sink . Special reflector system with high efficiency Translucence diffuser. On board short circuit and surge protections for reliable electrical system.
Wide beam angle of 120 with efficacy over 90Lm/ W.
Size 1" x1" , 2"x2", 1"x2", 1"x4".
Wattage: 18W, 30W & 36W.

LED Battern
Neptune Gold

Available in 5W / 10W / 20W.
Replacement of T-8/T-5 fittings. High-efficiency LED for optimum light output and savings in power.
High-quality PC Diffuser for LED linear lamp ensures soft and glare-free lighting Specially designed PC body for excellent Heat dissipation. Short circuit and surge protection for enhanced reliability and longer service life of driver.
Wide beam angle of 120 with efficacy over 100 Lm/W.

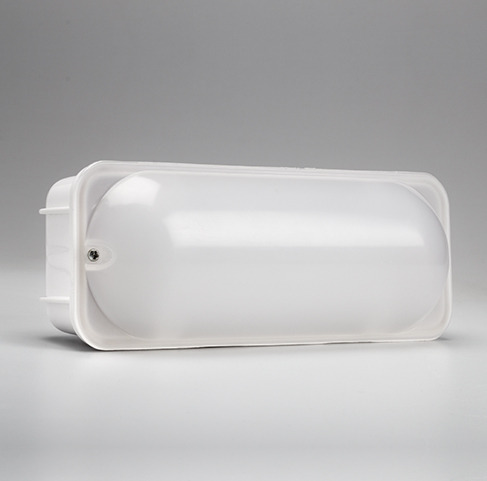

Box Type LED
Bulk Head

Available in 10W.
Made of pc housing. Glare-free in white color housing.
IP-65.
